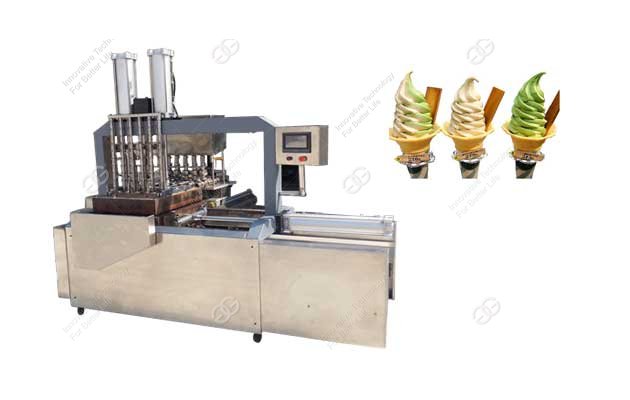

The working principle of wafer cone machine:
(A) rack: Department of welding profiles with profiles, the surrounding surface to plate. Load the mold above, equipped with a slide under the mold to facilitate the flow of finished products, but also have the function of thermal insulation. The bottom is equipped with electrical box. A set of pendulum mechanism is arranged above the rack, the front end of the swing rod is the upper mold of the mold and the rear end is connected with the spring, so as to balance the weight of the mold.

(B) mold: from the mold and the mold form. The upper die is centrally mounted with a core head and is suspended on the swing rod and moves around the supporter. The lower die is placed on the rack corresponding to the upper die. Under the mold is divided into three (DST-32 type is divided into five), the plate is fastened to the rack, the edge plate can be translated. When closed together as a whole, this time covered under the mold, the core into the mold cavity cavity, injected into the pulp that is pressed into the shape of the egg tray; raise the mold after the separation of the lower mold to form a certain spacing, Let the finished eggs fall, but also easy to clean.

Mold each body has a long vertical hole, power supply heating pipe inserted and energized fever, is the heat source baking egg tray. In order to prevent the heating tube loose, the mold body has a screw on each electric heating tube fastening.

Both ends of the lower mold are provided with traction handles, while the two hands are pushed forward at the same time, the lower mold is separated and pulled backward to be closed. In front of the lower mold is the central locking mechanism, also equipped with a handle, this handle on the spin, after the closure of the lower mold can be locked. On the other side of the front handle, with the upper mold locking mechanism, press down and right-handed to lock the mold, left-handed homeopathic uplift that can open the upper mold.
