Automatic Rolled Sugar Cone Production Line Manufacturer


  • Capacity:
  • Raw Materials:
  • Payment:FOB, CIF, EXW, L/C, Money Gram, Western Union
  • Power:

Live Chat Send Email

Features

The Flow Chat of Rolled Sugar Cone Production Line
Batter Mixing--grouting--cone sheet baking--biscuit transfer--cone sheet rolling--cone conveyor--sugar cone formed

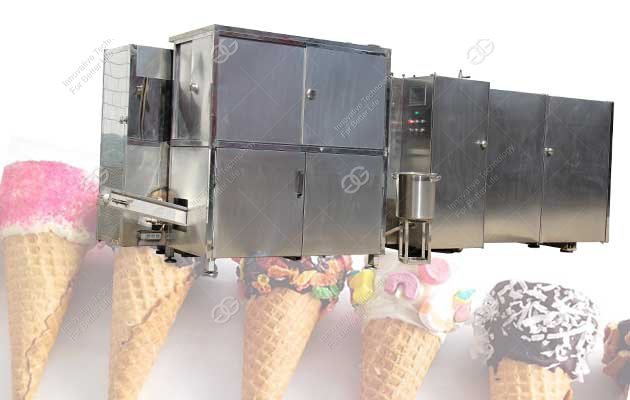

automatic rolled sugar cone production line
Introduction of Rolled Sugar Cone Production Line
This rolled sugar cone production line produced by our company mainly used for making different sizes of rolled sugar cones, this machine produce ice cream cones with 4500-5000pcs, this capacity is large, very suitable for many ice cream factory and cone factory. As a ice cream cone machine manufacturer, we produce various kinds of ice cream cone making machines, such as semi automatic ice cream cone making machine, automatic ice cream cone machines and rolled sugar cone production line. And apart from these, we also can produce the wafer ice cream cone machines, the machine can make the ice cream cone with different shapes and sizes, we produce the machine accorditng to your requirement. If you need this machine, welcome to contact us, and send your cone pictures, design, size and capacity to us, then we can talk more and suggest you the suitable ice cream cone machines. And if you worry about the quality of the machine, you can also visit our factory, welcome!

Features of Automatic Rolled Sugar Cone Production Line
♦ The machine is suitable for making flat mouth sugar cone length less than 120mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.
♦ The machine is consist of 280*240mm baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets.
♦ The machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.

Video of Rolled Sugar Cone Production Line

Technical Data

Model GG-55
Capacity 4500-5000pcs/h
Power 3KW, 380V 50Hz 3phase
Gas consumption 5-7kg/h
Dimension 9*1.9*1.85m
Total weight 5100kg
